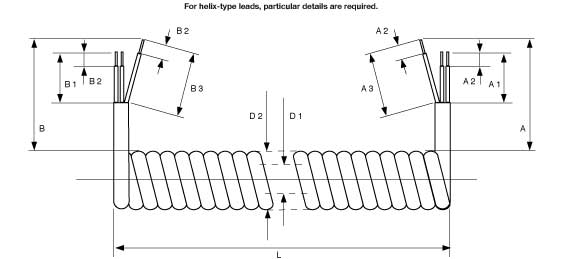

Ready-made leads and their main characteristics



L= Compressed length of the helix
D2= Outside diameter of the helix
D1= Inside diameter of the helix
A= Length of the straight first end
A3= Stripping length of the first end (jacket)
A2= Stripping length of the first end (insulation)
A1= Stripping length (complete)
B= Length of the straight second end
B3= Stripping length of the second end (jacket)
B2= Stripping length of the second end (insulation)
B1= Stripping length (complete)
