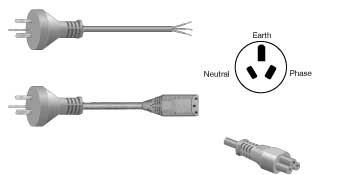

Argentinean plug,
two poles + earth
IRAM 2073/1982,
three poles up to
10 A/20 A/250V
| VALID IN THIS COUNTRIES |
|---|
 |
Rubber leads:
black (other colours on request)
| APPROVAL SYMBOLS | ||
|---|---|---|
| ||
| LEADTYPES IN USE AND CROSS-SECTIONS IN MM² | |||
|---|---|---|---|
| H03VV-F | 3 G 0,75 | ||
| H05VV-F | 3 G 0,75 | 3 G 1,0 | |
| H05RR-F | 3 G 0,75 | 3 G 1,0 | 3 G 1,5 |
| H05RN-F | 3 G 0,75 | 3 G 1,0 | |
| H07RN-F | 3 G 1,0 | 3 G 1,5 | |
| H03RT-F | 3 G 0,75 | 3 G 1,0 | |
| CONFIGURATIONS |
|---|
 |
With
the exception of the pin dimensions, the plug is identical with the
Australian and Chinese plug. The main difference is the assignment of
the individual pins. Neutral and phase are connected vice versa
compared to the Australian version.
The lead types correspond with the European types and are permitted for use in Argentina.
The dimensions of the pins of the 15/20A version are slightly different so that they can only be inserted in an adequate 20A power outlet.
